Comprehensive coding guide to building interactive experimental dashboards with face tracking with hugs
In this tutorial, we walk through the hugging face Trackio Step by step explore how we track experiments locally, cleanly and intuitively. We first install Trackio in Google Colab, prepare the dataset and set up multiple training runs with different hyperparameters. In the process, we documented the metrics, treated the chaos matrix as a table, and even imported the results from the CSV file to demonstrate the flexibility of the tool. By running everything in a notebook, we can see the hands-on experience of Trackio’s lightweight but powerful dashboards in real time for real-time updates. Check The complete code is here.
!pip -q install -U trackio scikit-learn pandas matplotlib
import os, time, math, json, random, pathlib, itertools, tempfile
from dataclasses import dataclass
import numpy as np
import pandas as pd
from sklearn.datasets import make_classification
from sklearn.linear_model import SGDClassifier
from sklearn.metrics import accuracy_score, log_loss, confusion_matrix
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import StandardScaler
import trackioWe first install the required libraries including Trackio, Scikit-Learn, Pandas, and Matplotlib. We then import the required Python modules and machine learning utilities so that we can seamlessly generate data, train models, and track experiments. Check The complete code is here.
def make_dataset(n=12000, n_informative=18, n_classes=3, seed=42):
X, y = make_classification(
n_samples=n, n_features=32, n_informative=n_informative, n_redundant=0,
n_classes=n_classes, random_state=seed, class_sep=2.0
)
X_train, X_temp, y_train, y_temp = trn_tst_split(X, y, test_size=0.3, random_state=seed)
X_val, X_test, y_val, y_test = train_test_split(X_temp, y_temp, test_size=0.5, random_state=seed)
ss = StandardScaler().fit(X_train)
return ss.transform(X_train), y_train, ss.transform(X_val), y_val, ss.transform(X_test), y_test
def batches(X, y, bs, shuffle=True, seed=0):
idx = np.arange(len(X))
if shuffle:
rng = np.random.default_rng(seed)
rng.shuffle(idx)
for i in range(0, len(X), bs):
j = idx[i:i+bs]
yield X[j], y[j]
def cm_table(y_true, y_pred):
cm = confusion_matrix(y_true, y_pred)
df = pd.DataFrame(cm, columns=[f"pred_{i}" for i in range(cm.shape[0])])
df.insert(0, "true", [f"true_{i}" for i in range(cm.shape[0])])
return dfThe assistant feature we created allows us to generate a synthetic dataset, split it into training, validation and test sets, batch training data and build confusion matrix tables. In this way, we train and evaluate all the basic settings needed for a smooth model. Check The complete code is here.
@dataclass
class RunCfg:
lr: float = 0.05
l2: float = 1e-4
epochs: int = 8
batch_size: int = 256
seed: int = 0
project: str = "trackio-demo"
def train_and_log(cfg: RunCfg, Xtr, ytr, Xva, yva):
run = trackio.init(
project=cfg.project,
name=f"sgd_lr{cfg.lr}_l2{cfg.l2}",
config={"lr": cfg.lr, "l2": cfg.l2, "epochs": cfg.epochs, "batch_size": cfg.batch_size, "seed": cfg.seed}
)
clf = SGDClassifier(loss="log_loss", penalty="l2", alpha=cfg.l2, learning_rate="constant",
eta0=cfg.lr, random_state=cfg.seed)
n_classes = len(np.unique(ytr))
clf.partial_fit(Xtr[:cfg.batch_size], ytr[:cfg.batch_size], classes=np.arange(n_classes))
global_step = 0
for epoch in range(cfg.epochs):
epoch_losses = []
for xb, yb in batches(Xtr, ytr, cfg.batch_size, shuffle=True, seed=cfg.seed + epoch):
clf.partial_fit(xb, yb)
probs = np.clip(clf.predict_proba(xb), 1e-9, 1 - 1e-9)
loss = log_loss(yb, probs, labels=np.arange(n_classes))
epoch_losses.append(loss)
global_step += 1
val_probs = np.clip(clf.predict_proba(Xva), 1e-9, 1 - 1e-9)
val_preds = np.argmax(val_probs, axis=1)
val_loss = log_loss(yva, val_probs, labels=np.arange(n_classes))
val_acc = accuracy_score(yva, val_preds)
train_loss = float(np.mean(epoch_losses))
trackio.log({
"epoch": epoch,
"train_loss": train_loss,
"val_loss": val_loss,
"val_accuracy": val_acc
})
if epoch in {cfg.epochs//2, cfg.epochs-1}:
df = cm_table(yva, val_preds)
tbl = trackio.Table(dataframe=df)
trackio.log({f"val_confusion_epoch_{epoch}": tbl})
time.sleep(0.15)
trackio.finish()
return val_accWe define a configuration class to store our training settings and a train_and_log function that runs the SGD classifier while recording metrics. We track losses, accuracy and even confusing matrices across each period, allowing us to provide digital and visual insights into model performance in real time. Check The complete code is here.
Xtr, ytr, Xva, yva, Xte, yte = make_dataset()
grid = list(itertools.product([0.01, 0.03, 0.1], [1e-5, 1e-4, 1e-3]))
results = []
for lr, l2 in grid:
acc = train_and_log(RunCfg(lr=lr, l2=l2, seed=123), Xtr, ytr, Xva, yva)
results.append({"lr": lr, "l2": l2, "val_acc": acc})
summary = pd.DataFrame(results).sort_values("val_acc", ascending=False).reset_index(drop=True)
best = summary.iloc[0].to_dict()
run = trackio.init(project="trackio-demo", name="summary", config={"note": "sweep results"})
trackio.log({"best_val_acc": float(best["val_acc"]), "best_lr": float(best["lr"]), "best_l2": float(best["l2"])})
trackio.log({"sweep_table": trackio.Table(dataframe=summary)})
trackio.finish()We performed a small hyperparameter scan of learning rate and L2 and recorded the verification accuracy for each run. We then summarize the results into a table, record the best configuration for the tracking, and then complete the summary run. Check The complete code is here.
csv_path = "/content/trackio_demo_metrics.csv"
df_csv = pd.DataFrame({
"step": np.arange(10),
"metric_x": np.linspace(1.0, 0.2, 10),
"metric_y": np.linspace(0.1, 0.9, 10),
})
df_csv.to_csv(csv_path, index=False)
trackio.import_csv(csv_path, project="trackio-csv-import")
app = trackio.show(project="trackio-demo")
# trackio.init(project="myproj", space_id="username/trackio-demo-space")
We simulated a CSV file for metrics, imported it into Trackio as a new project, and then launched the dashboard for our main project. This allows us to view recorded running and external data in Trackio’s interactive interface. Check The complete code is here.

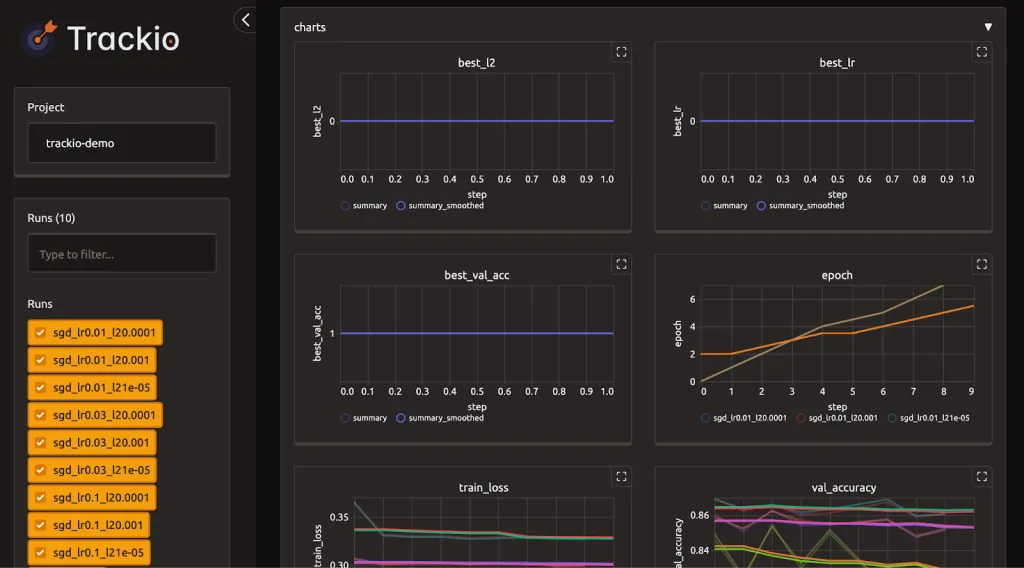

Tracking Dashboard Overview
In short, we experienced how Trackio simplifies experimental tracking without the complexity of major infrastructure or API setup. Not only do we log in and compare runs, we can also capture structured results, import external data, and launch the interactive dashboard directly within COLAB. With this workflow, we see how trackers enable us to stay organized, monitor progress effectively and make better decisions during the experiment. This tutorial provides us with a solid foundation to seamlessly integrate trackers into our own machine learning projects.
